Geocell/Geonet/Geoweb Specification
1).material : HDPE
2)Thickness:1,1.2,1.5,2mm
Height:50,100,150,200mm
3)TGLG5,TGLG8,TGLG10,TGLG15,TGLG20
Applications:
1. firm for the railway roadbed
In order to prevent gravel gradation lateral movement is stronger as a whole to prevent the pumping, even if the soft ground can prevent the collapse of the whole or in part, the large volume of traffic in areas such as the Cross Road, bifurcation Road and turn, can significantly increase the use of Number of years.
2. for a solid roadbed
Can generate high power and flexibility of both traditional and rock embankment on the basis compared to the basis of thickness can be reduced more than 50% of the gravity and contact with the pressure and reduce the horizontal dispersion and can be used when the account or on a permanent road construction .
3. used to bear the gravity of the dam wall
Strengthen the definition of gravel to form the structure of the body has to stop cross-cutting pressure, no matter slide and pool formation, can itself be supported by non-structural surface layer and the natural plant, or a vertical ladder-type design.
4. shallow water for river training:
Three-direction grid to enhance the strength of avoid fill soil erosion and increase the load, can reduce the cost of construction of the shallow river and allow river traffic with the design and a variety of soil conditions.
5.. support for the pipeline and sewer:
To use a more solid foundation for the pipeline, the construction is simple, reducing the excavation, do not have to lay many rocks and avoid part landslide in the long run.
6. used to prevent landslides and heavy-duty force by the retaining wall mixed:
Do not have to use the template structure can create a solid wall, and backfill side firmly into the price of one, even if the traditional structure of a variety of gravity is not available, fill materials can also significantly reduce the cost of the project.
7. independence for the strong terminals, such as dams room.
Can be quickly wall structure independent from the independent wall, and the use of water in the granular to protect dam, or weir wall, if temporary facilities are to be removed also Geocell back at the pier or breakwater and other important coastal Also use a wide range

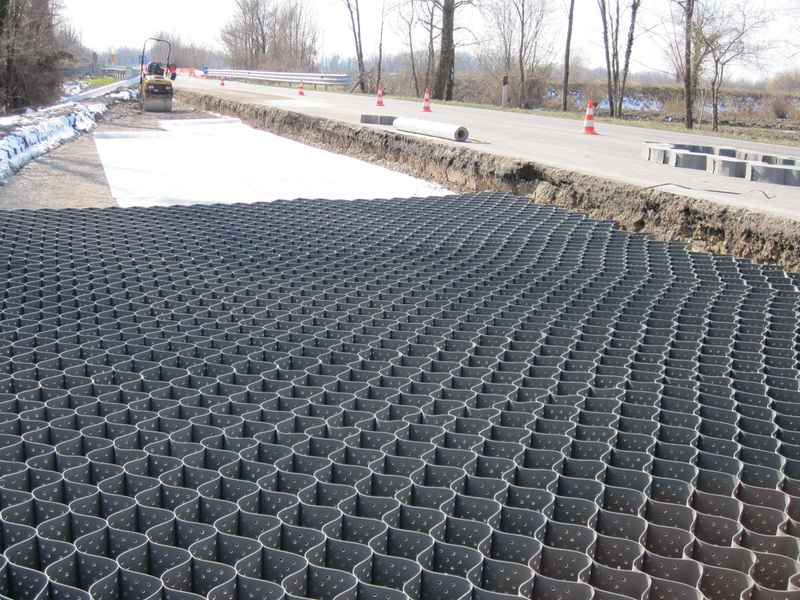

Geocell photo
technical data
Item No. | Hight (mm) | Weld distance (mm) | Thickness of the Sheet (mm) | Tensile strength of weldig points( N/cm) | Tensile strength of connection of cells (N/cm) | Tensile srength at yield of each sheet (N/mpa) |
| GS-50-400 | 50 | 330≤A<1000 | ≥1.1 | ≥100 | ≥120 | ≥20 |
| GS-75-400 | 75 | 330≤A<1000 | ≥1.1 | ≥100 | ≥120 | ≥20 |
| GS-100-400 | 100 | 330≤A<1000 | ≥1.1 | ≥100 | ≥120 | ≥20 |
| GS-150-400 | 150 | 330≤A<1000 | ≥1.1 | ≥100 | ≥120 | ≥20 |
| GS-200-400 | 200 | 330≤A<1000 | ≥1.1 | ≥100 | ≥120 | ≥20 |
Our service
· The sample is free.
· The quality of our products are qualified.
· Our delivery speed will be the fastest.
· We can provide the most professinal technical guidance and service
FAQ
1. How about the delivery time?
Lead time since receipt of 30% T/T deposit payment: 3 weeks.
2. What's are the MOQ?
We can according to your condition to set the MOQ.
And we can provide you samples for quality inspection.
3. How to deal with the sample charge?
Accordeing to our company policy, the samples are free, we only charge the freight fee.And we will return the freight fee If you set the order.
4. Can you produce the product according to customers' requirements?
Sure, we are professional manufacturer, OEM and ODM are both welcome.
