Wall & Slope Reinforcement Polyester PET Uniaxial Geogrid
Home » Products » Wall & Slope Reinforcement Polyester PET Uniaxial Geogrid
Share to:

Wall & Slope Reinforcement Polyester PET Uniaxial Geogrid

Soil Reinforcement & Stabilization-

Wall & Slope Reinforcement Polyester PET Uniaxial Geogrid

Roll Size : 2x100m  3.98x100m 5.2x100m Etc


Availability:
Quantity:
  • 800/50kn 600/50KN 500/50kn 400/50kn 300/50KN 120/30
  • Lianyi or OEM
  • 392690
  • Polyester PVC



Wall & Slope Reinforcement Polyester Geogrid



Polyester (PET) geogrids are specifically designed for improved performance in soil reinforcement applications PET series geogrids are manufactured with high molecular weight, high tenacity polyester yarns by precision knitting process. It is dimensionally stable with uniform network of apertures providing significant tensile reinforcement capacity in two principal directions. The Lianyi Polyester geogrid is engineered to be mechanically and chemically stable, in both harsh construction installation phase and in aggressive soil environments (pH level 3.0 – 10.0). Lianyi PET  geogrids are biologically unaffected by soil micro –organisms. A black PVC saturation coating provides further chemical, mechanical, as well as ultraviolet protection.


four-strands-polyester-geogrid

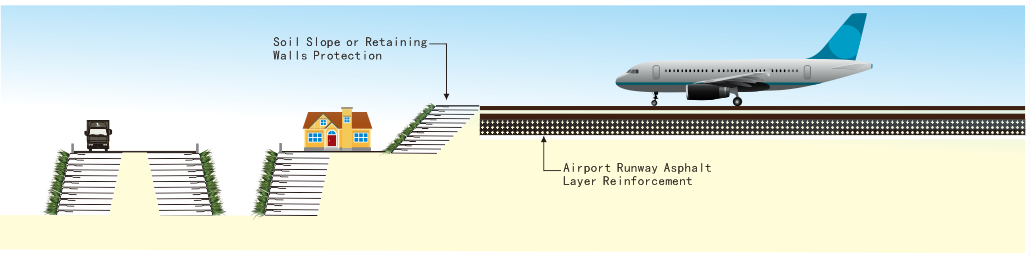

PET uniaxial geogrids are specifically designed for soil reinforcement in applications such as retaining walls and steep slopes where soil strength develops uni-axially. Placed between soil layers these geogrids work to reinforce the soil and improve structural stability.  They can be used alone or in combination with a range of facing elements such as segmental blocks; precast concrete panels; green facing or wraparound galvanized steel facing to effectively maximize soil performance and prevent early structural deterioration. Aside from new construction these slope reinforcement geogrids are highly recommended for slope remediation projects and/or landslide repairs. This involves excavating, reusing the failed soil, and layering it with geogrid to provide the necessary reinforcement.


f4180439850a2aed6bfb5afc8d17ef6

Benefits of PET GeoGrid


  • Can be used with a wide range of facing options (Concrete blocks, concrete panels, treated timber in various textures and colors)

  • Provides up to 60% in material and time savings compared to conventional reinforced concrete and gravity structures.

  • High resistance to dynamic shock loading and seismic activity.

  • Allows the use of on-site fill.

  • Fast, easy and economical construction.

  • Withstand differential settlement.

  • High connection capacity strength between facing and the grid.

  • Aesthetically appealing structure.

  • Reduces traffic disruption and lane closure.


Applications


  • Retaining wall systems

  • Bridge abutments

  • Vegetated retaining walls

  • Steep reinforced slopes

  • Embankments on soft subgrades

  • Landfill liner reinforcement

  • Mining applications

微信图片_20210403072647
